Vertical high pressure pumps from stainl. steel - SIGMIA Trading ENG

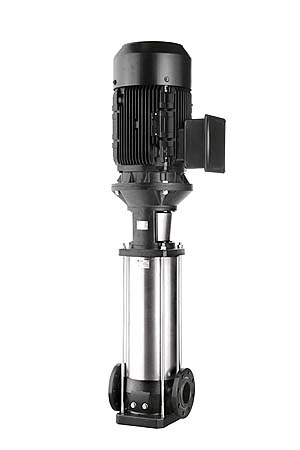

New vertical multistage centrifugal pumps which come in various versions: cast iron (EVMG),AISI 304 stainless steel (EVM), AISI 316 stainless steel (EVML) and WRAS-approved (EVMW). Reliable, quiet and easy to maintain. They come with different numbers of stages and in a different sizes to meet individual capacity and head requirements. Suitable for municipal, Industrial and agricultural applications e.g. Fire fighting systems, pressure boosting (WRAS approved) water treatment plants, irrigation, hot and cold water movement for heating systems, cooling and airconditioners, especially suitable for boiler feed due to their sturdy construction. All the new EVM pumps can be coupled with standard IEC motors.

The new vertical multistage pumps conform to directive 94/9/EC on ATEX equipment (belonging to Group II, Category 2).

The splined shaft features high mechanical strength.

The casing rings are floating types and easy to replace.

Maximum working pressure:

1,6 MPa

2,5 MPa

3,0 MPa (only for EVM32 - EVM45)

Liquid temperature: from –15°C upto +120°C

: from -15°C upto +85°C (for EVMW)

Pump body, external casing, casing cover, impellers, diffusers, bearing sleeve, coupling guard and bolts in contact with liquid AISI 304 (EVM), AISI 316 (EVML), EVMG version: Bottom casing in cast iron

Tie-rods and bolts not in contact with liquid in zinc coated steel

Shaft in AISI 316

Bearing in contact with liquid in tungsten-carbide

Bracket and base in cast iron

Mechanical seal in SiC/Carbone/FPM (EVM3-EVM5-EVM10-EVM18)

Cartridge mechanical seal standard (EVM32-EVM45-EVM64

(F= round flanges; N= oval flanges)

Asincronous 2 poles motor

Insulation class F

Protection IP55

1~220V ± 10% 50Hz (up to 2,2kW) 3~230/400V ±10% 50Hz (up to 4kw included)

3~400/690V ±10% above 5,5 kW
