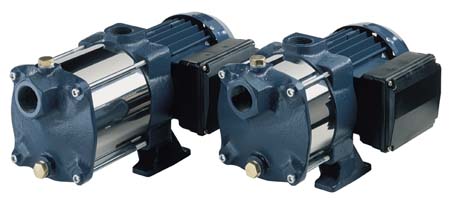

Multistage horizontal pumps - SIGMIA Trading ENG

Horizontal centrifugal multistage pumps suitable for pressure boosting systems,car washing, small garden irrigation and general clean water pumping.

Maximum working pressure: 10 bar

Maximum liquid temperature: 40°C

Pump body and bracket in cast iron

External casing in AISI 304

Impeller and diffuser in tecnopolymer

Shaft in AISI 416

Mechanical seal in carbon/ceramic/NBR

Asincronous 2 poles motor

Insulation class F

Protection degree IP44

1~230V ± 10% 50Hz, 3~230/400V ± 10% 50Hz

Permanent split capacitor and automatic thermal overload protection for single-phase version

Thermal protection to be provided by the user for three-phase version

DNM 1” – DNA 1”1/4 for COMPACT B/12 and B/15,1” for other models
