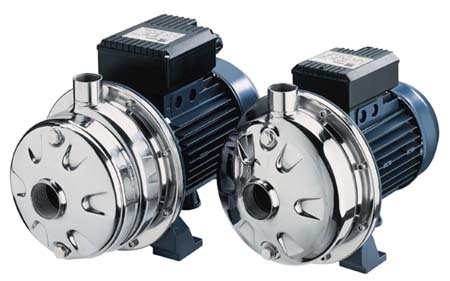

Single impeller centrifugal pumps with hydraulic components manufactured from stainless steel AISI 304, suitable for pressure boosting, water supply, treatment & irrigation. Air conditioning systems and general water pumping including moderately aggressive liquids

Maximum working pressure: 8 bar

Maximum liquid temperature: 60°C for CDX 70/05-70/07-90/10 90°C

110° for H and HS version

Pump body, impeller, diffuser and casing cover in AISI 304

Shaft in AISI 303

Bracket and motor casing in alluminium

Mechanical seal in Ceramic/Carbon/NBR (for CDX)

Ceramic/Carbon/FPM (for CDXH) SiC/SiC/FPM (for CDXHS)

Special mechanical seal are available on demand

T.E.F.C. 2 poles motor

Insulation class F

Protection degree IP55

1~230V ± 10% 50Hz, 3~230/400V ± 10% 50Hz

Permanent split capacitor and automatic thermal overload protection for single-phase version

Thermal protection to be provided by the user for three-phase version

DNA 1"1/2 for CDX200, DNA 1"1/4 for the other models

DNM 1”
