Centrifugal pumps by DIN 24255 Standard - SIGMIA Trading ENG

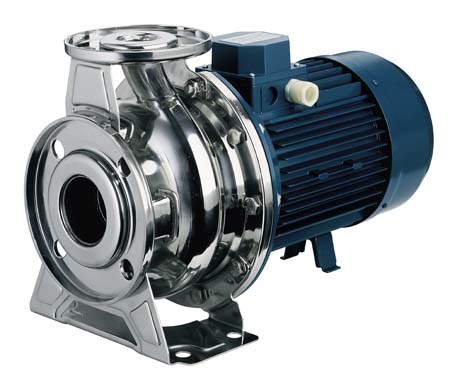

End suction centrifugal pumps in accordance with DIN 24255 made of stainless steel AISI 304, applications include water boosting, heating systems, air-conditioning, washing systems and many other industrial applications. WRAS approved pumps are available upon request.

3PF-3LPF and 3SF-3LSF products are according to ATEX Directive.

Maximum working pressure: 10 bar

Liquid temperature: from –20°C to +110°C

Pump body, impeller, casing cover and shaft in AISI 304

Impeller in AISI 304, in AISI 316 for 65 version (in bronze for 3BM-3BS-3BP version)

Mechanical seal in carbon/ceramic/NBR for standard version

Mechanical seal in carbon/ceramic/Viton for H version

Mechanical seal on SiC/SiC/FPM for HS version

Asincronous 2 and 4 poles motor

Insulation class F

Protection degree IP55

3~230/400V ± 10% 50Hz upto 4kW included, 400/690V ±10% above

Thermal protection to be provided by the user Available in 5 different versions, 2 and 4 poles
