Self-priming portable pumps - SIGMIA Trading ENG

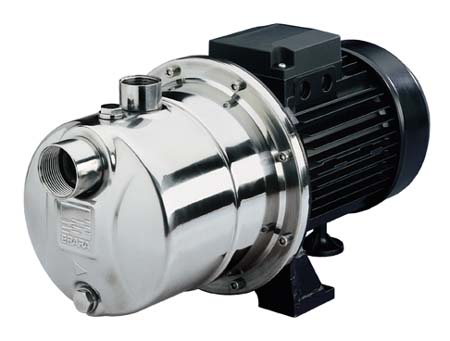

AISI 304 Self priming electropump manufactured in stainless steel AISI 304 suitable for water supply, domestic pressure boosting and small irrigation systems, pool and tank emptying and general clean water pumping.

Maximum working pressure: 6 bar

Maximum liquid temperature: 45°C

Pump body, casing cover in AISI 304

Shaft in AISI 303

Impeller in AISI 304 for JEX, in tecnopolymer for JESX

Mechanical seal in carbon/ceramic/NBR

Asincronous 2 poles motor

Insulation class F

Protection degree IP54 (on request IP55)

1~230V ± 10% 50Hz, 3~230/400V ±10% 50Hz

Permanent split capacitor and automatic thermal overload protection for single-phase version

Thermal protection to be provided by the user for threephase version

DNA 1” for JESX, 1”1/4 for JEX

DNM 1”
