Submersible sewage and drainage pumps - SIGMIA Trading ENG

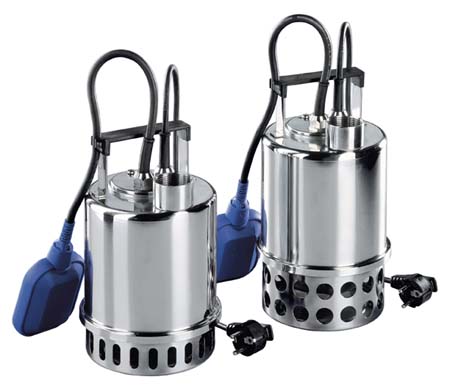

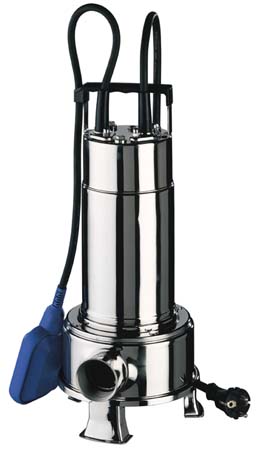

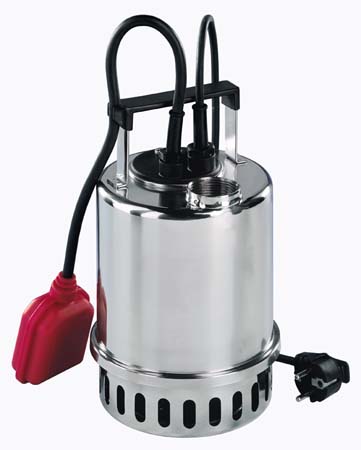

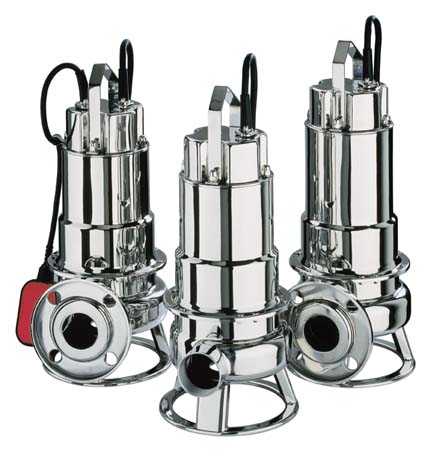

Submersible sump pump made of stainless steel AISI 304, double mechanical seals ensure long life and reliability. Suitable for draining wells, plant room sump, lift shaft emptying, pools, sumps, irrigation, and water displays. Options include with - without float switch. Solids handling upto 10mm

Maximum liquid temperature:35°C

Maximum immersion: 10 mts

Maximum passage of solids: 10 mm

Pump casing, impeller, strainer, cover, casing cover and motor casing in AISI 304 Shaft in AISI 303

Double mechanical seal with interposed oil chamber upper in carbon-caramic/NBR - lower in SiC/SiC/NBR

Asincronous 2 poles motor

Insulation class F

Protection degree IP68

1~230V +- 10% 50Hz - 3~400V +- 10% 50Hz

Permanent split capacitor and automatic thermal overload protection for single-phase version

Thermal protection to be provided by the user for three-phase version DNM 1”1/2
