JESXM8 a JEX

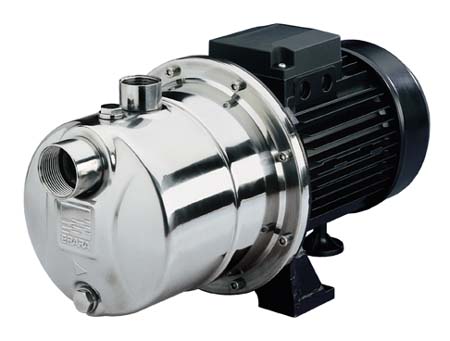

AISI 304 Self priming electropump manufactured in stainless steel AISI 304 suitable for water supply, domestic pressure boosting and small irrigation systems, pool and tank emptying and general clean water pumping.

Specifications

Maximum working pressure: 6 bar
Maximum liquid temperature: 45°C

Materials

Pump body, casing cover in AISI 304
Shaft in AISI 303
Impeller in AISI 304 for JEX, in tecnopolymer for JESX
Mechanical seal in carbon/ceramic/NBR

Technical document

Asincronous 2 poles motor
Insulation class F
Protection degree IP54 (on request IP55)
1~230V ± 10% 50Hz, 3~230/400V ±10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for threephase version
DNA 1” for JESX, 1”1/4 for JEX
DNM 1”
