IDROGO

AISI 304

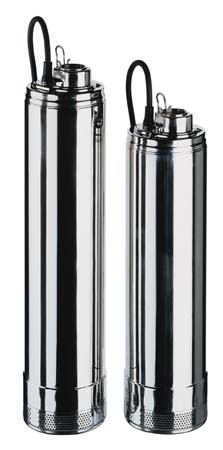

5" submersible centrifugal multistage pump made of stainless steel AISI 304 and noryl, suitable for the movement of clean water from wells, tanks for irrigation systems. The double mechanical seal ensures long life and improved reliability. There is no need for a starter box as the capacitors are installed in the pumping unit allowing a neater installation.

Specifications

Maximum working pressure: 10 bar
Maximum liquid temperature: 40°C
Installation: in horizontal and vertical position
Maximum immersion: 20 mts
10 mts (with float switch)

Materials

External casing, motor casing, casing cover
and closing ring in AISI 304
Impeller, diffuser and spacer in tecnopolymer
Shaft in AISI 416
Upper mechanical seal in carbon/ceramic/NBR,
lower mechanical seal in SiC/carbon/NBR

Technical document

Asincronous 2 poles motor cooled by the pumped liquid
Insulation class F
Protection degree IP68
1~230V ± 10% 50Hz, 3~400V ± 10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version DNM 1”1/4
