DWO

AISI 304

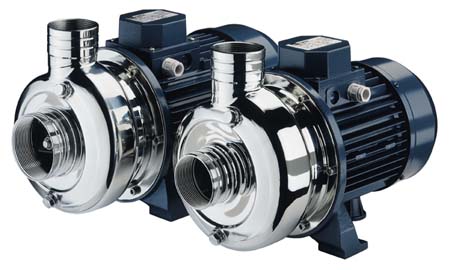

Open impeller centrifugal pumps with the hydraulic element manufactured from stainless steel AISI 304, suitable for suspended solids handling food process e.g. washing vegetables, meats, and fish. Industrial washing machines that may contain solids e.g. bottles, jars, glasses & crates. Process applications such as paint plants & general dirty liquid handling.

Specifications

Maximum working pressure: 8 bar
Maximum liquid temperature: 90°C
Passage of solids: maximum diameter of 19 mm

Materials

Casing, casing cover, impeller and shaft in AISI 304
Bracket and motor frame in Aluminium
Mech.seal in Carbon/ceramic/NBR
Special mechanical seals on request

Technical document

Asincronous 2 poles motor
Insulation class F
Protection degree IP55
1~230V ± 10% 50Hz, 3~230/400V ± 10% 50Hz
Permanent split capacitor and automatic thermaloverload protection for single-phase version
Thermal protection to be provided by the user for three-phase version
DNA 2"1/2 for
DWO 300-400
DNA 2" for the other models
DNM 2
