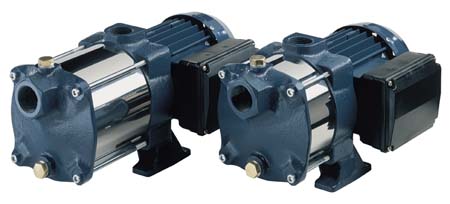

COMPACT

Horizontal centrifugal multistage pumps suitable for pressure boosting systems,car washing, small garden irrigation and general clean water pumping.

Specifications

Maximum working pressure: 10 bar
Maximum liquid temperature: 40°C

Materials

Pump body and bracket in cast iron
External casing in AISI 304
Impeller and diffuser in tecnopolymer
Shaft in AISI 416
Mechanical seal in carbon/ceramic/NBR

Technical document

Asincronous 2 poles motor
Insulation class F
Protection degree IP44
1~230V ± 10% 50Hz, 3~230/400V ± 10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version
DNM 1” – DNA 1”1/4 for COMPACT B/12 and B/15,1” for other models
