CDXH a 2 CDXH

AISI 304

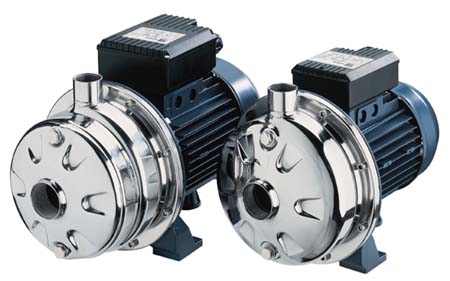

Single impeller centrifugal pumps with hydraulic components manufactured from stainless steel AISI 304, suitable for pressure boosting, water supply, treatment & irrigation. Air conditioning systems and general water pumping including moderately aggressive liquids

Specifications

Maximum working pressure: 8 bar
Maximum liquid temperature: 60°C for CDX 70/05-70/07-90/10 90°C
110° for H and HS version

Materials

Pump body, impeller, diffuser and casing cover in AISI 304
Shaft in AISI 303
Bracket and motor casing in alluminium
Mechanical seal in Ceramic/Carbon/NBR (for CDX)
Ceramic/Carbon/FPM (for CDXH) SiC/SiC/FPM (for CDXHS)
Special mechanical seal are available on demand

Technical document

T.E.F.C. 2 poles motor
Insulation class F
Protection degree IP55
1~230V ± 10% 50Hz, 3~230/400V ± 10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version
DNA 1"1/2 for CDX200, DNA 1"1/4 for the other models
DNM 1”
