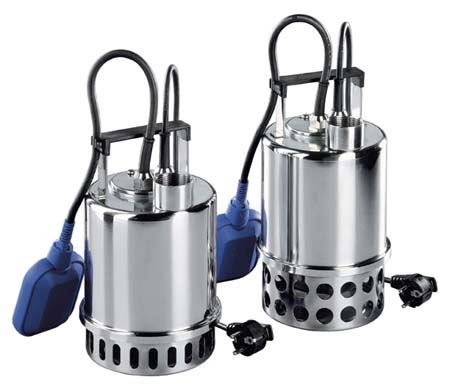

BEST ZERO a BEST ONE

AISI 304
Submersible sump pump made of stainless steel AISI 304, double mechanical seals ensure long life and reliability. Suitable for draining wells, plant room sump, lift shaft emptying, pools, sumps, irrigation, and water displays. Options include with - without float switch. Solids handling upto 10mm

Specifications

Maximum liquid temperature:35°C
Maximum immersion: 10 mts
Maximum passage of solids: 10 mm

Materials

Pump casing, impeller, strainer, cover, casing cover and motor casing in AISI 304 Shaft in AISI 303
Double mechanical seal with interposed oil chamber upper in carbon-caramic/NBR - lower in SiC/SiC/NBR

Technical document

Asincronous 2 poles motor
Insulation class F
Protection degree IP68
1~230V +- 10% 50Hz - 3~400V +- 10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version DNM 1”1/2

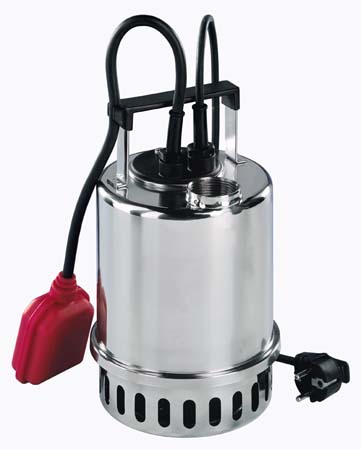

BEST ZERO

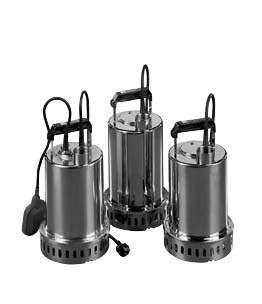

BEST 2 - 5

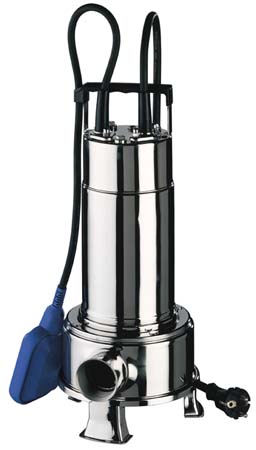

RIGHT

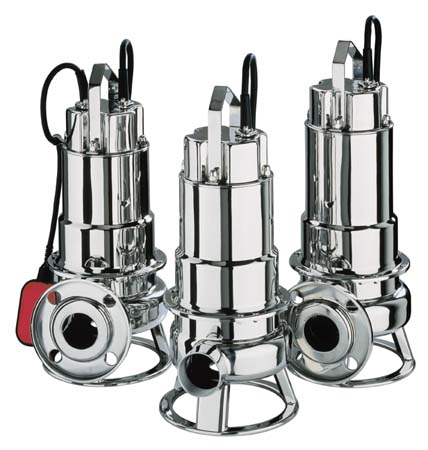

DW | DW VOX
